Kent, CT., Firematic BRAT in production

[markmets415 524]

Firematic Manufacturing has now started another B.R.A.T (Brush Rapid Attack Truck) in our area for our neighbors in Kent, CT., the unit will be almost identical (it will not be blue) to our unit, this will add to the growing list that with Wassaic (2), Rhinecliff, Pawling (will be delivered this week) and Washington CT in our area.

• 2014 Ford F550 2 Door 4x4 Chassis w/ 19,500 lbs. GVW
• Super Single Aggressive Tread 19.5" Interco Irok Tires
• Lightweight Aluminum Fabricated Flatbed with FEA Tested Roll Bar
• Pro Poly 400 Gallon Protector Skid w/ 10 gal. Foam Cell
• Hale HPX300 - B18 Gasoline Pump
• Hale Pro Kit Stainless Steel Inlet and Discharge Manifold
• Exhaust Primer
• Scotty "Around the Pump" Class A Foam Eductor System
• Two Aluminum Diamond Plate Rear 1.5" Hose Trays
• Two Electric Hannay Reels Mounted on Tank (1) 200' of 1" Lightweight Booster and (1) 1000' of 1" Forestry hose
• (4) Aluminum Diamond Plate Compartments with ROM roll up doors.
• Whelen LED Lighting and Siren Package
• Warn 9.5ti Portable Electric Winch
• Oil Pan and Transmission Skid Plate
• Slide out front tool board
• Custom Suction Hose holders
• Whelen LED scene lights

Here is the drawing of the unit

http://www.firematic.com/brat/kent14/kent_drawing.pdf

Information, forth coming photos and drawing added with permission from David Horton of Firematic

Edited November 15, 2013 by markmets415

[markmets415 524]

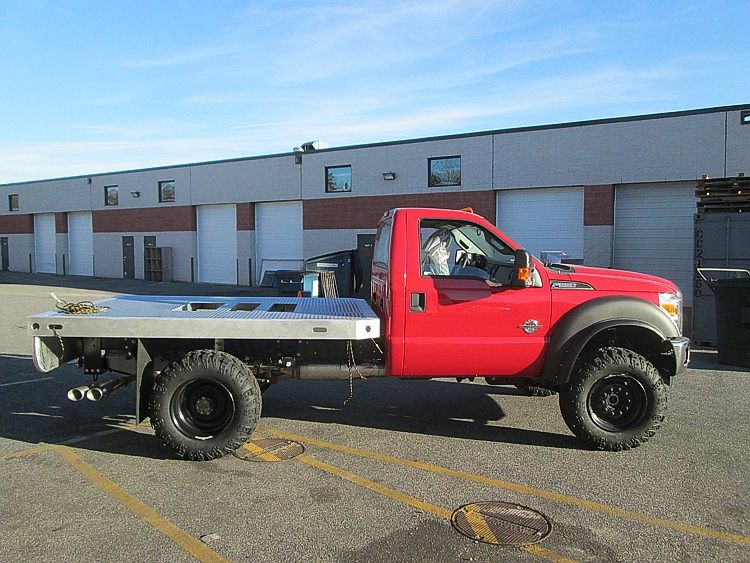

A few photos from the shop, flat bed body is completed and mounted.

[Ladder44 73]

Is this to replace what burnt up last year at the brush fire?

[Ladder44 73]

Is this to replace what burnt up last year at the brush fire?

Make that 2.5 years ago....http://wildfiretoday.com/2011/03/30/connecticut-engine-burns-in-brush-fire/

[Ed Harvey 26]

I believe that has been replaced by an engine company from Gowans-Knight, prehaps ex-Watertown (although might have been a loaner).
